The PS-MZ502 multi-zone system is the latest and most improved climate control system for multiple zones. Controlling up to 31 zones, the PS-MZ502 offers a wide range of features, all available through the same main board.

Suitable for either Heat/Cool or Heat Pump applications, the PS-MZ502 allows for up to 4 stages of Heat and 2 stages of Cool.

Since each zone and the master are pre-assigned an individual MAC address, the master can now be used to view AND set the local zone parameters (set point, local ON/OFF), as well as setting the main system parameters (ON/OFF, Mode, Fan).

A Fresh Air damper output is available, and the FAD can be controlled by 1 of 2 logics; or by a timer (minutes per hour) or by temperature (difference between indoor and outdoor temperature). The bypass damper can also be controlled by 1 of 2 logics; by the number of rooms or by pressure. A special pressure sensor input exists for this reason.

With 2 different fault inputs and 3 temperature sensor inputs, this new multi-zone answers all commercial or residential climate needs.



SALE!




Get 1 free Multi-Zone!

Buy 4 complete sets

of the PS-MZ502

and receive the 5th one free...

1 set includes:

- 1 Main Board (PS-MZ502)

- 1 Master (M500)

- 5 Zones (Z500)

- 5 Junction Boxes








    Click here to request order information..

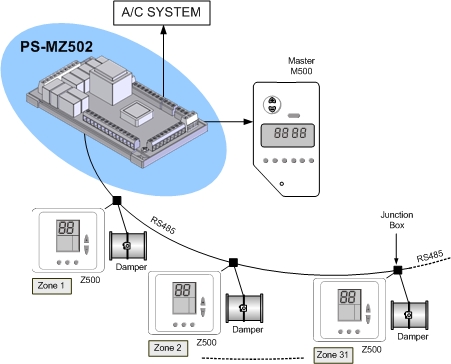

PS-MZ502 Layout







Features:

  • Auto-Changeover mode available

  • Access to zones available through master

  • Duct temperature sensor for freeze protection in Cool and overheat protection in Heat

  • General purpose, 24Vac dampers suitable

  • Proportional damper outputs

  • Open/close time adjustable for zone dampers

  • Fresh air damper output- option

  • Bypass damper output- option

  • Weekly program- option



See Data Sheet of PS-MZ502 >>>



Note:

The PS-MZ502 will soon be compatible with the Maxinet system.
